I also had a new spare hayward circuit board and since it had the same led performance it seemed like to be the display board.

Aquarite circuit board problems. Hayward led s lcd display control box shows lcd display but no led s are illuminated. Are you sure you purchased and installed the correct board. Aquarite circuit board aqua rite chlorine generator aqua rite best chlorine hayward aqua rite goldencalendar co rite pump parts diagram pool wiring of deep well jet plus how to wire a hayward aquarite on 115v youtube blue works aqua rite pcb main circuit board replacement for hayward goldline aquarite salt chlorination systems hayward aqua rite wiring diagram salt logo hayward aqua aqua rite. How to repair for 5 the hayward aqua rite chlorine generator click here http bit ly 3cw05zd how to repair for 5 the hayward aqua rite chlorine gener.

The lcd screen will display cold when the water temperature is below 50 f. The screen will show hot when the water temperature is above 140 f. No step i wtput visually inspect main pcb board for any damaged or burnt components. Before replacing the current limiter on the main circuit board in my aqua rite system which was clearly broken neither the power nor the generating leds would light up.

Jumpers on terminal tbi are configured for 240 vac factory default but there is 120 vac applied to control box. Low high cell temperature the. When switched to super chlorinate that led would also light up. Page 11 hayward.

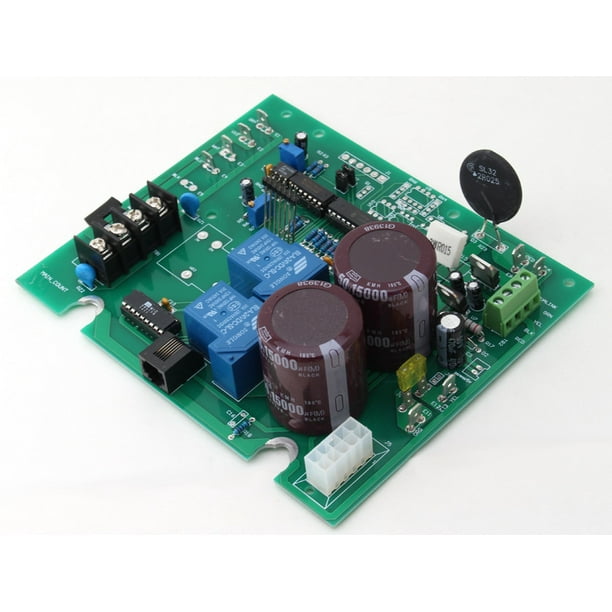

A simple fix as you can see if you know. Find new replacement salt cells here. If damaged or burned replace the main pcb. After replacing the current limiter the power led would light up on the display pcb but not the generating light.

Also when you install a new board you need to make sure the circuit voltage settings correct before applying power. Quick vid showing how to fix the classic thermistor inrush current limiter burnout problem that plagues these units. April 8 2019 at 10 48.
